MistKing Ultimate Misting System

C$399.99 Excl. tax Out of stock
Unit price: C$0.00
This is the latest 4th generation Ultimate Misting System. Created based on most often ordered parts and feedback from our customers coupled with our constant thirst to do better. Read more

Specifications

Brand:
MistKing
Availability:
Out of stock
Delivery time:
1-2 Weeks for most (Please call for precise restock times)

Information

Each version sold before had some major improvement that made it better than the previous. This time we tackled the improvement of the timer. It's the brain controlling the misting system. We initially used a customized timer for our needs. It worked, yet had some operational issues and was susceptible to spikes and power outages. We felt we could improve. Problem was, there was nothing better available. It had to be made. Took a lot of funds, time, frustration and testing to create and develop a product from ground up with original software, logic, boards, displays and functionality. We ended up creating 3 different controllers that would fit many needs. You can now pick and customize your system to control it exactly as you need it.

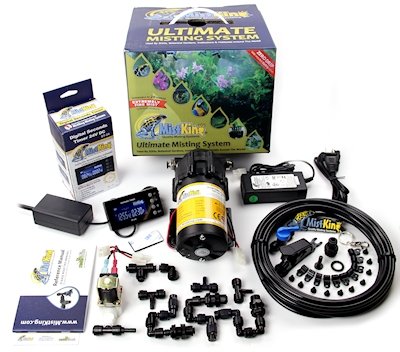

This Ultimate Value Misting System v4.0 includes



  • 24V DC misting pump, capable of running up to 20 nozzles. Pump is very robust and can run dry!!! This pump has been tested for a long time in the field and in the factory and by us personally. It has extremely low failure rates and it simply WORKS! We went through a lot of pumps before arriving at this one. Custom manufactured for MistKing.com and is unique to us. Pump is adapted for 1/4" tubing and includes vibration dampening rubber feet.
  • Pump power adapter. (cUL listed)
  • 3 Value T misting assemblies. Every assembly is tested and it includes our super low flow check-valved spray tip, custom crafted in black with an average droplets size of ~50 microns. Check-valved tips greatly reduces the post mist drip. These nozzles can be adjusted and positioned in any direction. Can be securely fastened to any surface up to 0.625" (5/8") or 1.5cm thick. This misting assembly is patented at USPTO.
  • ZipDrip Valve with 1/4" fittings - our nozzle tips already greatly reduce dripping, but ZipDrip eliminates post mist drip all together, resulting in ZERO, (Zip) Drip! See it in action .
  • Reservoir bulkhead with O-ring and plug.
  • 25 feet of 1/4" black opaque tubing
  • 1/4" Manual Ball Valve
  • Digital Seconds Timer ST-24 - with instructions.
  • 10 tubing clips with screws
  • Tubing cutter with collet tool.
  • "T" connector (in case you want to split the tubing)
  • "L" connector (in case you need to turn a sharp 90 degrees with the tubing)
  • cable Y-connector for connecting the ZipDrip valve and pump together to the timer.
  • Reference manual
